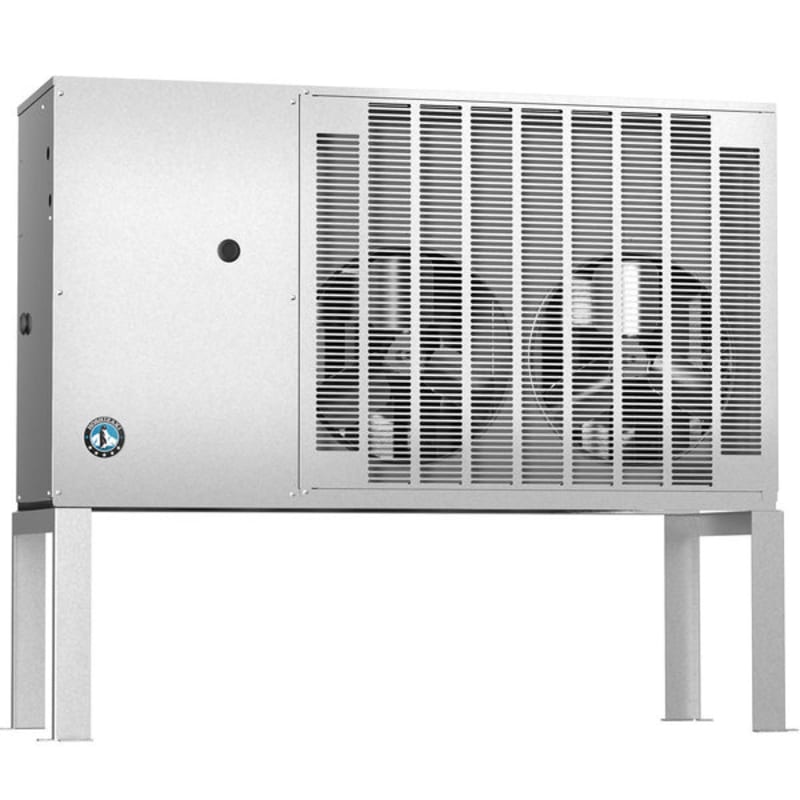

The SRK-15J3, SRK Series Remote Condenser provides a quiet, energy-efficient operation designed to save money on energy costs and reduce excess heat in commercial kitchens.
This remote condenser can be installed away from the ice maker using Brazing & Refrigerant Required (25', 35', 55'), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The SRK-15J3 Remote Condenser operates on Three Phase, 230v/60/3, Must be hardwired at the site (4 wire, including ground. If neutral is not available, transformer kit (HS-5030) is required.), and R-404a refrigerant (15 lbs. 14 oz./7200 g).
Compatible icemakers sold separately: KMS-1402MLJ-3.
Certifications
UL Listed
Electrical Specs
Icemaker Connection: Three Phase, 230v/60/3
Must be hardwired at the site (4 wire, including ground. If neutral is not available, transformer kit (HS-5030) is required.)
Operating Limits
Ambient Temp Range: -20 - 122°F
Voltage Range: 187 - 253V
Refrigerant: R-404a
BTU/h: 28,000 BTU/h
Brazing & Refrigerant Required Line Kits
25' Length: HS-0250
35' Length: HS-0251
55'' Length: HS-0252
